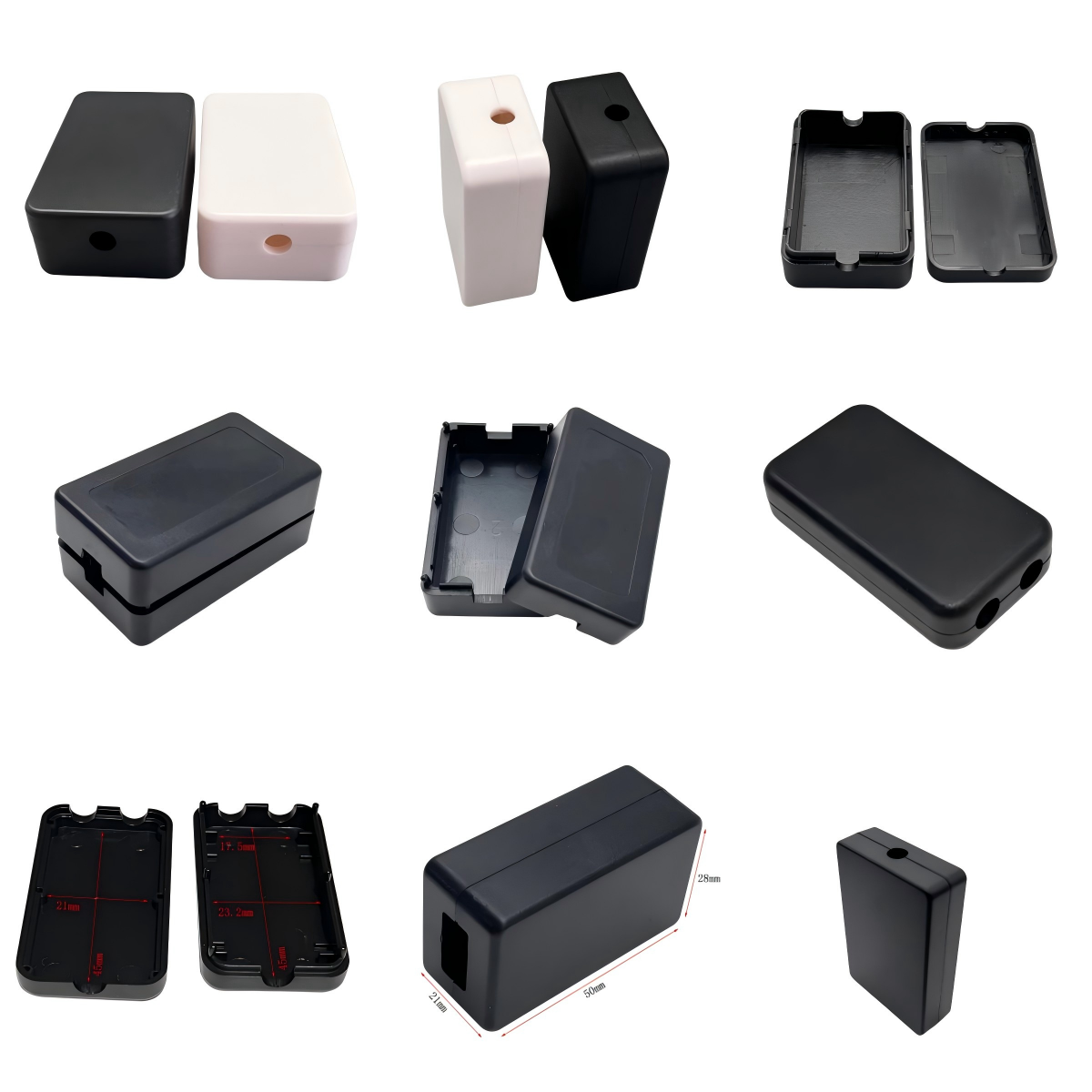

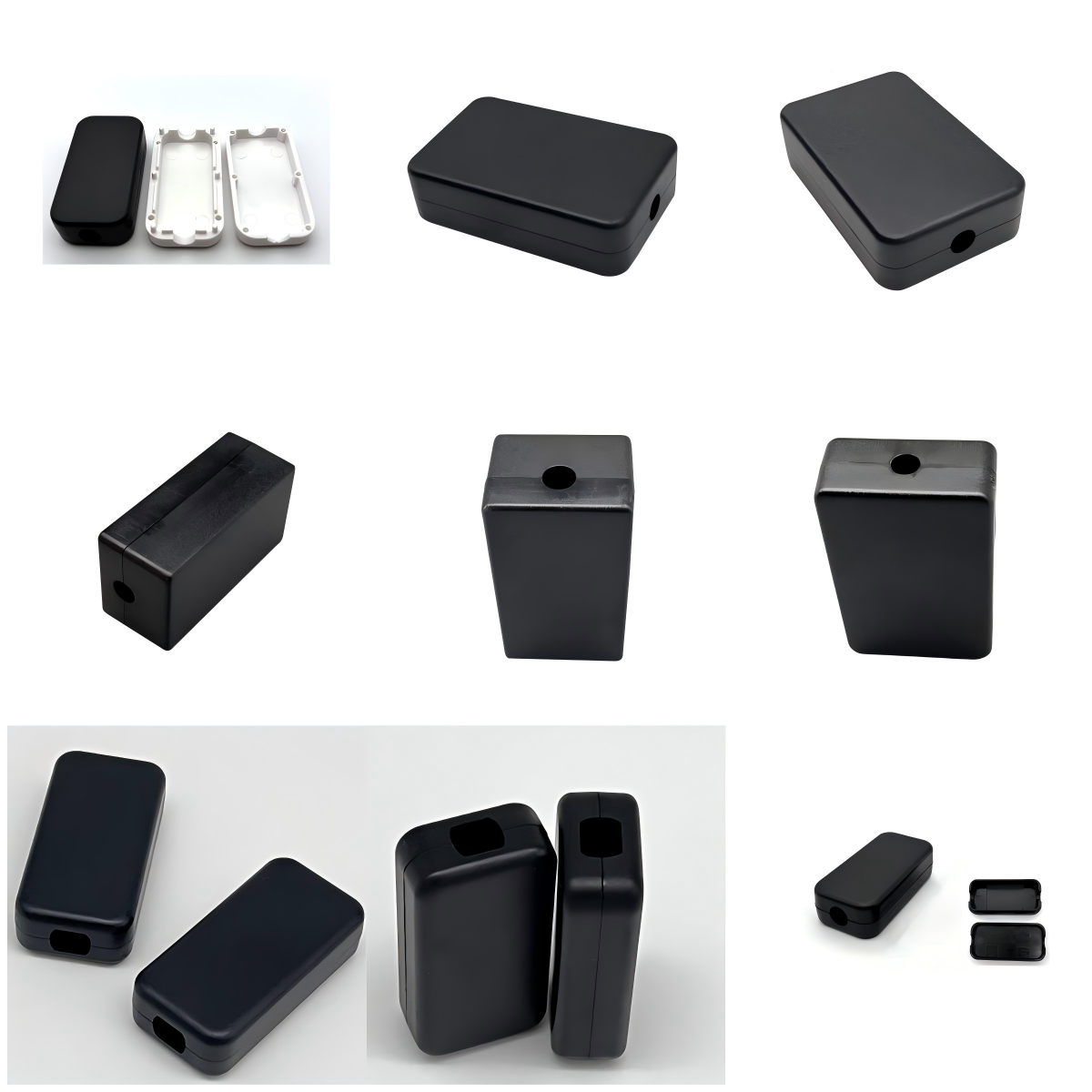

Customized plastic shell USB shell transparent shell, plastic power supply external controller shell electronic junction box

Customized plastic shell USB shell  transparent shell, plastic power supply  external controller shell electronic junction box

This product is widely applicable in fields such as electronics, instruments, meters, sensors, communication electronics, and smart cards. It can be customized with CNC openings, silk printing, pad printing, and mold production based on customer requirements, including custom designs from drawings or samples.

   【Product Material】: ABS

   【Product Specifications】:

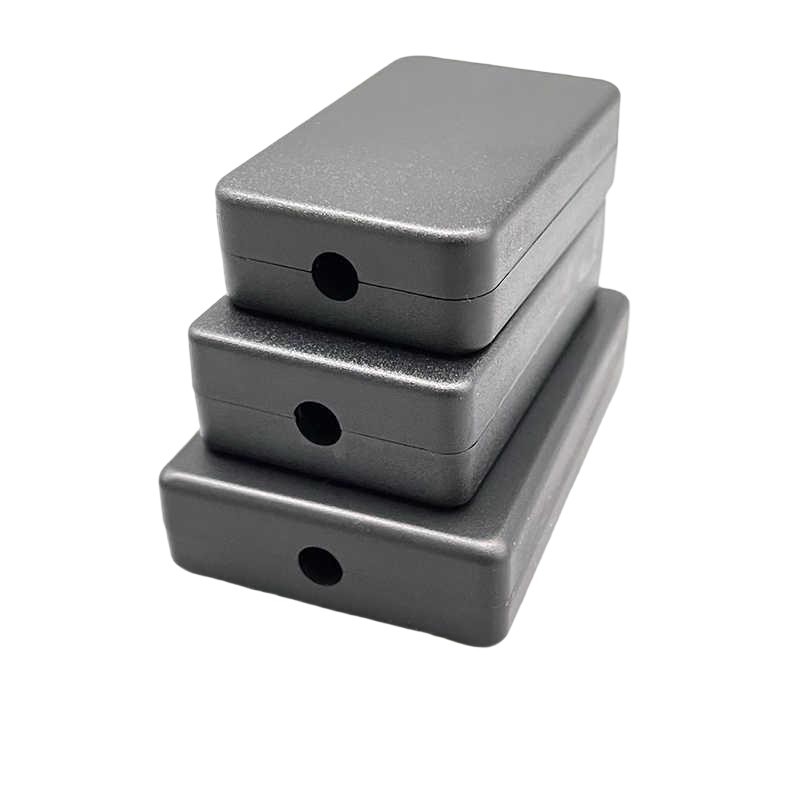

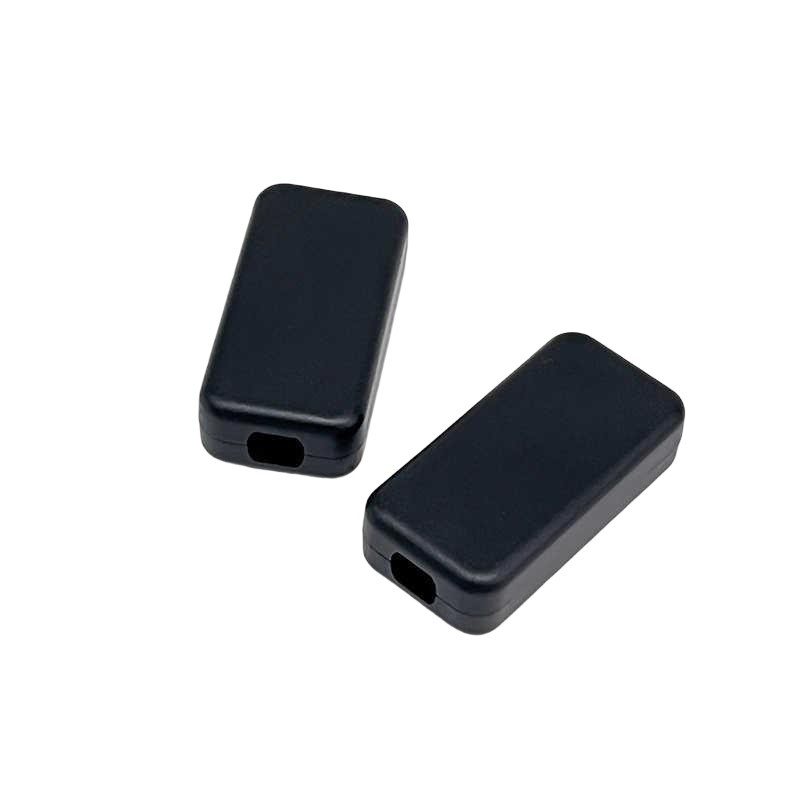

D63 40*20*11mm internal dimensions 34.8*14.7*5mm; two elliptical holes 6.8*5mm on both sides.

D64 42*22*12mm internal dimensions 37*16*9mm with 6mm round holes on both sides

D66 48*26*15mm (Internal dimensions: 43*21*11.8mm) with 6mm round holes on both sides

D68 55*35*15mm Internal dimensions 50*30*12.5mm One inlet and one outlet Φ6

D67 48*26*20mm internal dimensions 44*21*17mm one inlet and one outlet Φ6

D70  60*37*17mm  Inner dimensions 55*32*14mm  One inlet and one outlet Φ6

D71 55*35*20mm

D-73 60*40*15mm

D-74 60*40*20mm

D-75 60*40*25mm

D79 43*22*11mm

D78 50*28*12mm internal dimensions 45*23*9.5mm one inlet and two outlets Φ6

D55 A  50*28*21 mm  Internal dimensions 44*23*17mm  One side with square hole 6*6mm  One side with square hole 14.2*7mm

D55 B  50*28*21 mm  Internal dimensions 44*23*17mm  One inlet and one outlet square hole 6*6mm

D72 52*22*13mm internal dimensions 46*15.5*9mm one inlet Φ6 one outlet square hole

D32 68*46*16 Internal dimensions: 62.8*40.8*12mm

D160 68*46*20 Inner dimensions 62.8*40.8*16 mm

D161 68*46*25 Internal dimensions: 62.8*40.8*21.5mm
